Eman PTFE Lining, Tarboul, Egypt, is a prominent manufacturer of PTFE-lined pipes, providing state-of-the-art piping solutions for aggressive chemicals and high-purity fluid handling applications. Engineered for the secure transfer of aggressive chemicals, these pipes offer outstanding chemical resistance along with high mechanical strength. Eman PTFE Lining provides a wide range of PTFE-lined products such as straight pipes, elbows, tees, reducers, and custom spool assemblies. Supplying industries including chemical processing, pharmaceutical, food manufacturing and water treatment, the firm delivers leak-proof, low-maintenance systems designed to international quality specifications and function efficiently in challenging environments.

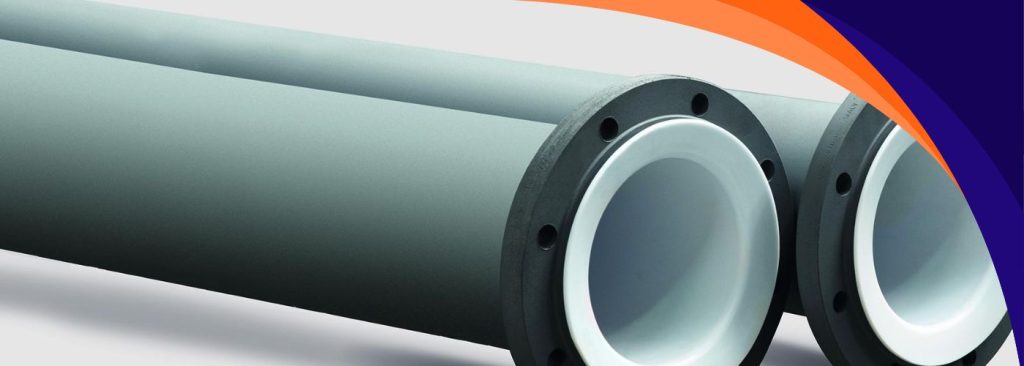

PTFE-lined pipe is a steel pipe internally lined with Polytetrafluoroethylene (PTFE), which has superior resistance to highly corrosive and reactive fluids. The lining with PTFE offers protection from chemical attack, contamination and scaling and the steel outer component gives structural strength and pressure durability. These pipes are best suited for the handling of acids, solvents, and other aggressive chemicals and find their application in chemical processing and pharmacy industries. Through increased service life, maintenance reduction, and safe, leak-free fluid transfer, PTFE-lined pipes provide consistent performance in challenging applications.
Size : 25 NB to 450 NB
Pipe Material : 106 grade B Sch 40 from 25 NB to 150 NB
Flanges Used : ASTM A 105/IS 2062
Hydro Test : at 29.8 Kg/cm2
Spark Test : 15 KVA

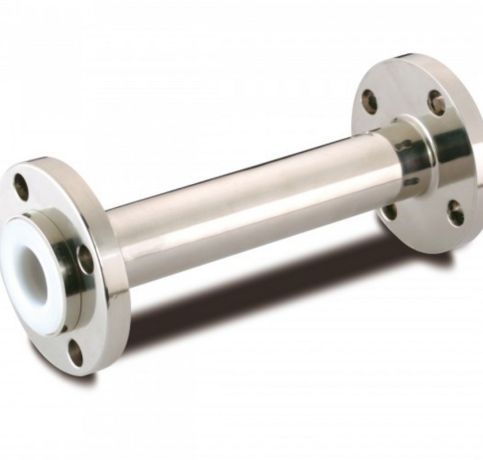

PIPE : 1. SEAMLESS CS ASTM A106 GR.B, SCH.-40, 2. ASTM A312 TP 304, SCH.-40
FLANGE : 1. IS 2062 / ASTM A105, 2. ASTM A351 GR. CF8
Lining Material Options

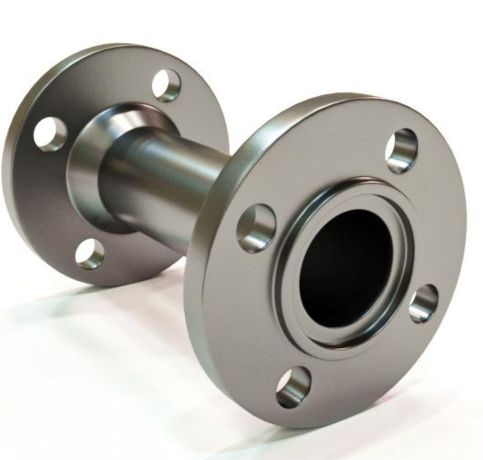

PFA – ASTM D 3307

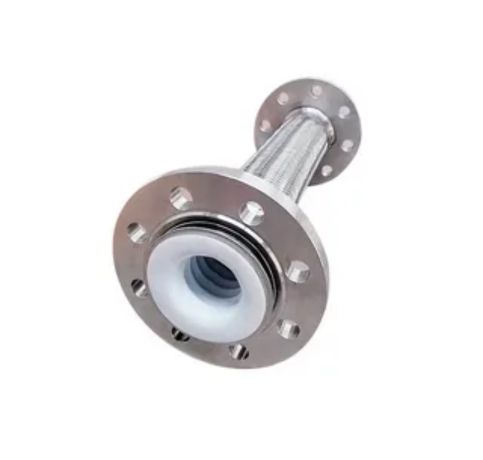

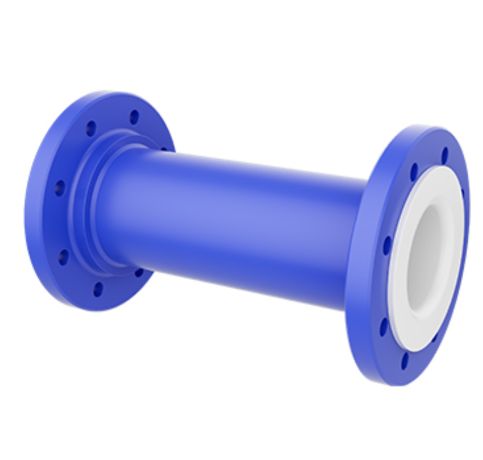

FEP – ASTM D 2116
ETFE – ASTM D 3159
PVDF – ASTM D 3322

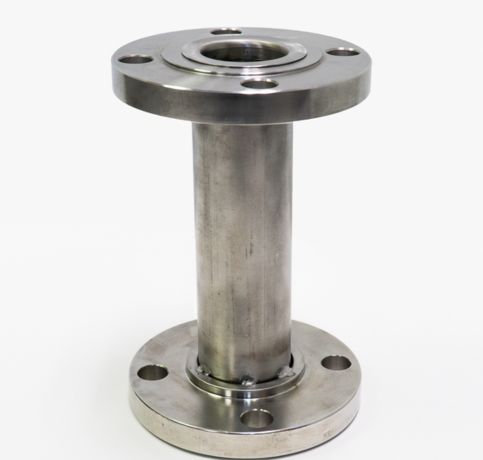

PP – ASTM D 4101
HDPE
Eman PTFE Lining is a leading supplier of PTFE Lined Pipes in Tarboul, Egypt, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| SIZE | Min. Avail Length with flange | Max. Length Avail. | Flange Stopper Thik “J” | Wgt per mtr length | Wgt + ~ 1 mtr | |
| NB | INCH | (mm) | (mm) | (mm) | (Kg) | (Kg) |
| 25 | 1″ | 100 | 6000 | 10 | 5.5 | 3.3 |
| 40 | 1.5″ | 100 | 6000 | 10 | 8.5 | 5.5 |
| 50 | 2″ | 100 | 6000 | 10 | 11.0 | 6.5 |
| 80 | 3″ | 110 | 6000 | 10 | 20.0 | 13.0 |
| 100 | 4″ | 110 | 6000 | 10 | 30.0 | 18.5 |
| 150 | 6″ | 125 | 6000 | 10 | 48.7 | 33.8 |
| 200 | 8″ | 125 | 6000 | 12 | 75.5 | 52.0 |
| 250 | 10″ | 140 | 3000 | 12 | 98.5 | 62.5 |
| 300 | 12″ | 150 | 3000 | 12 | 120.0 | 82.0 |
| 350 | 14″ | 200 | 3000 | 12 | 157.0 | 84.0 |
| 400 | 16″ | 200 | 1500 | 12 | 192.0 | 95.6 |
| 450 | 18″ | 210 | 500 | 15 | 214.0 | 108.0 |
| 600 | 24″ | 240 | 500 | 15 | 335.0 | 145.0 |
Superior protection against corrosive chemicals.
Reduces friction and enhances flow efficiency.
Withstands high temperatures (up to 260°C) and high pressures.
More affordable than expensive alloys, offering similar performance.
It has the strength of steel and the chemical resistance of PTFE, making it suitable for corrosive fluid transportation.
They are extensively applied in chemical processing, pharmaceuticals, food and beverage, and wastewater treatment applications.
Yes, they can work under a wide temperature and pressure range, as per the system specifications.
Yes, PTFE-lined pipes are customizable in various sizes and lengths, tailored to meet specific industrial application requirements.
Extremely low maintenance is required, owing to PTFE‘s non-stick property and corrosion resistance and buildup.
