Eman PTFE Lining, Tarboul, Egypt is a major supplier of Teflon Lined Pipes providing very reliable and corrosion-free piping products for industrial fluid transfer. Teflon-lined (PTFE) internal surface gives them great resistance against aggressive chemicals, temperature, and contamination. Eman PTFE Lining offers the complete line of lined piping products including straight pipe, elbows, tees, reducers, and specialty spool pieces. Serving the chemical, pharmaceutical, food processing, and water treatment markets, the company assures long-lasting leak-free systems engineered to international standards of safety and quality.

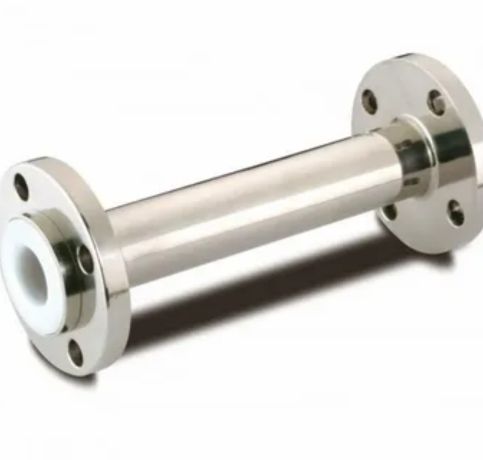

A Teflon Lined Pipe is a Teflon-coated (PTFE) steel or alloy pipe inside to provide high resistance to chemical corrosion, thermal stress, and contamination of fluid. The Teflon coating acts as a protective barrier, keeping the metal frame safe while presenting a smooth, non-reactive inner surface. The pipes find optimal application for the supply of aggressive or high-purity liquids in chemical processing, pharmaceutical, and other industrial applications. Teflon lined pipes offer improved service life, minimal maintenance and leak-free, safe operation under harsh operating conditions.

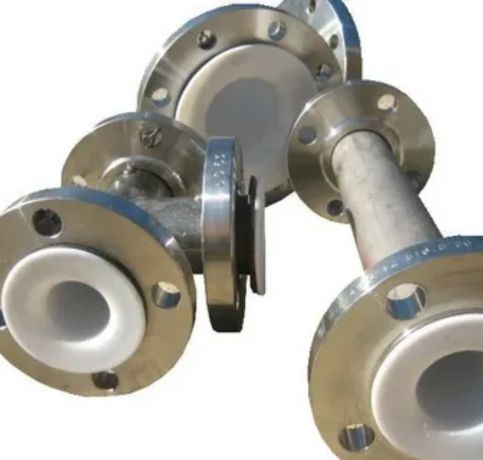

Eman PTFE Lining is a leading supplier of SS PTFE Telfon Lined Pipes in Tarboul, Egypt, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| Size (NB) | øA±1 | øB | øC | PCD | øE | G | No. of Holes | Holes Dia | Pipe THK. K | Liner THK. S | Face THK. H |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 MM | 14 | 21 | 34.9 | 60.3 | 88.9 | 11.1 | 4 | 15.9 | 2.9 | 4 | 2.4 |
| 20 MM | 19.6 | 26.6 | 42.7 | 69.8 | 98.4 | 12.7 | 4 | 15.9 | 3.4 | 4 | 2.4 |
| 25 MM | 19.6 | 26.6 | 50.8 | 79.4 | 108 | 14.2 | 4 | 15.9 | 3.4 | 4 | 2.4 |
| 32 MM | 28.1 | 35.1 | 63.5 | 88.9 | 117.5 | 15.8 | 4 | 15.9 | 3.6 | 4 | 2.4 |
| 40 MM | 33.9 | 40.9 | 73 | 98.4 | 127 | 17.5 | 4 | 15.9 | 3.7 | 4 | 2.4 |
| 50 MM | 45.5 | 52.5 | 92.1 | 120.7 | 152.4 | 19.1 | 4 | 19 | 3.9 | 4 | 2.4 |
| 65 MM | 55.7 | 62.7 | 104.8 | 139.7 | 177.8 | 22.2 | 4 | 19 | 5.2 | 4 | 2.4 |
| 80 MM | 70.9 | 77.9 | 127 | 152.4 | 190.5 | 23.8 | 4 | 19 | 5.5 | 4 | 2.4 |
| 100 MM | 95.3 | 102.3 | 157.2 | 190.5 | 228.6 | 23.8 | 8 | 19 | 6 | 4 | 2.4 |
| 125 MM | 119.2 | 128.2 | 185.7 | 215.9 | 254 | 23.8 | 8 | 22.2 | 6.6 | 5 | 3.8 |
| 150 MM | 145.1 | 154.1 | 215.9 | 241.3 | 279.4 | 25.4 | 8 | 22.2 | 7.1 | 5 | 3.8 |
| 200 MM* | 197.4 | 206.4 | 269.9 | 298.5 | 342.9 | 28.6 | 8 | 22.2 | 6.35 | 5 | 3.8 |
| 250 MM* | 249.3 | 260.3 | 323.9 | 362 | 406.4 | 30.2 | 12 | 25.4 | 6.35 | 6 | 4 |
| 300 MM* | 300.1 | 311.1 | 381 | 431.8 | 482.6 | 31.8 | 12 | 25.4 | 6.35 | 6 | 4 |
| 350 MM* | 328.7 | 339.7 | 412.8 | 476.3 | 533.4 | 34.9 | 12 | 28.6 | 7.92 | 6 | 4 |
| 400 MM* | 379.5 | 390.5 | 469.9 | 539.8 | 596.9 | 36.5 | 16 | 28.6 | 7.92 | 6 | 4 |
| 450 MM* | 429.3 | 441.3 | 533.4 | 577.9 | 635 | 39.7 | 16 | 31.8 | 7.92 | 6.5 | 4.4 |
| 500 MM* | 475.9 | 488.9 | 584.2 | 635 | 698.5 | 42.9 | 20 | 32 | 9.52 | 7 | 4.8 |
| 600 MM* | 575.9 | 590.5 | 692.2 | 749.3 | 812.6 | 47.6 | 20 | 35 | 9.52 | 8 | 5.6 |
| 700 MM | 685.1 | 692.1 | 801.6 | 863.6 | 827.1 | 50 | 28 | 35 | 9.52 | 4 | 2.4 |
| 800 MM | 786.7 | 793.7 | 916.2 | 977.9 | 1060.4 | 50 | 28 | 41.3 | 9.52 | 4 | 2.4 |
Teflon (PTFE) resists a wide range of corrosive chemicals, acids, and solvents, making it ideal for harsh industrial environments.
The smooth, non-stick inner surface reduces flow resistance, prevents buildup, and improves fluid efficiency.
Teflon performs reliably across a wide temperature range (typically -20°C to +200°C), maintaining integrity under thermal stress.
PTFE lining is non-reactive and inert, ensuring purity of media—critical for pharmaceuticals, food, and high-purity chemical applications.
A Teflon lined pipe is a metal pipe internally coated with PTFE, offering high resistance to corrosion, chemicals, and heat, ideal for safely transporting aggressive or reactive fluids.
They are employed in chemical processing, pharmaceuticals, food and beverage, water treatment, and semiconductor industries.
Yes, PTFE (Teflon) can withstand a broad range of temperatures, making it suitable for thermal and chemical applications.
Yes, Eman PTFE Lining can be customized to meet individual client requirements for lengths, diameters, flanges, and fittings.
When installed and used correctly, Teflon lined pipes provide a longer service life with minimal maintenance.
We are the leading Manufacturer and Supplier of PTFE Lined Pipe, Fittings, Flanges, Spool and Valves in Tarboul, Egypt.
