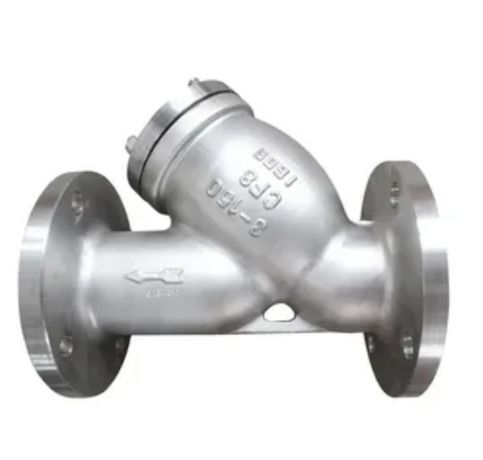

Eman PTFE Lining, the leading PTFE, FEP, and PFA Lined Strainer producing company in Tarboul, Egypt, provides high-quality FEP/PFA Lined “Y” Type Strainers with best quality as per national as well as international quality standards. FEP/PFA Lined “Y” Type Strainer gets its name due to its Y-configuration that serves to eliminate gross particles in the initial stage of flow. The strainers of this type turn out to be useful in excluding solid impurities in pipelines.

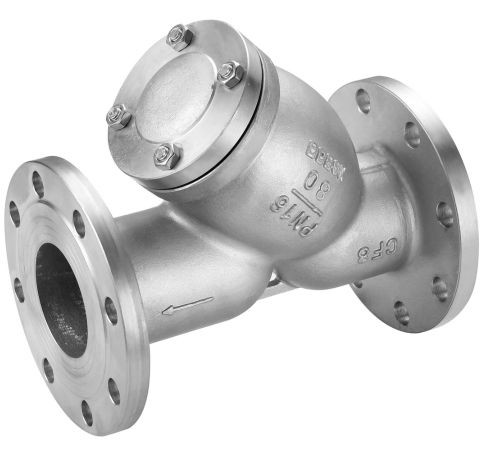

A PTFE Lined Y Type Strainer is a chemical-resistant strainer used in pipelines to trap and screen out debris or solid contaminants in aggressive or high-purity fluids. The Y-type is specified to reduce flow restriction, whereas the lining of PTFE (Polytetrafluoroethylene) provides superior chemical resistance and protects against contamination. Ideal for aggressive fluid applications, this strainer protects downstream equipment and extends system life. It is widely applied in the pharmaceutical, chemical, and water treatment industries for secure and efficient handling of fluids.
Size : 25 NB to 300 NB
Outer body : ASTM A 395 Gr 60-40-18
Flange Connection : ANSI B 16.5
Face to Face : ANSI B 16.10
Spark Test : 15 KVA
Hydro Test : at 29.8 kg/cm2
FEP- Max Temp : 180° C
PP Max Temp : 100° C
PFA Max Temp : 200° C
Eman PTFE Lining is a leading supplier of PTFE Lined Y Type Strainer in Tarboul, Egypt, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| Size(mm) | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 |
| Size(inch) | 1″ | 1½” | 2″ | 2½” | 3″ | 4″ | 6″ | 8″ |
| L | 190 | 260 | 284 | 305 | 348 | 415 | 508 | 650 |
| Ød | 25 | 38 | 50 | 65 | 75 | 100 | 150 | 200 |
| O.D. ØD | 110 | 125 | 150 | 180 | 190 | 230 | 280 | 345 |
| P.C.D. ØK | 79.2 | 98.5 | 120.6 | 139.7 | 152.4 | 190.5 | 241.3 | 298.4 |
| R.F.DIA. ØRF | 50.8 | 73.0 | 92.1 | 104.7 | 127.0 | 157.2 | 215.9 | 269.9 |
| No. OF HOLE N | 4 | 4 | 4 | 4 | 4 | 8 | 8 | 8 |
| HOLE DIA. ØH | 15.8 | 15.8 | 19 | 19 | 19 | 19 | 22.2 | 22.2 |
Effectively removes debris and particulates, protecting downstream equipment and improving system longevity.
Operates efficiently under high-temperature conditions without compromising material integrity or filtration performance.
PTFE lining adds durability, ensuring the strainer withstands harsh operational conditions for extended periods.
Requires less upkeep due to durable PTFE lining.
It removes solid dirt from corrosive or high-purity liquids in order to prevent damage to downstream equipment.
PTFE provides high chemical resistance, and the strainer is hence applicable for reactive or aggressive media.
Chemical processing, pharmaceuticals, food and beverages, and sewage treatment.
Yes, MM PTFE Lining offers a range of mesh sizes and materials according to filtration requirements.
Yes, they are easily cleaned and low maintenance due to the corrosion-resistant PTFE lining.
We are the leading Manufacturer and Supplier of PTFE Lined Pipe, Fittings, Flanges, Spool and Valves in Tarboul, Egypt.
