Eman PTFE Lining is one of the reputed manufacturers with an excellence and quality reputation in providing PTFE Lined Cross fittings for highly demanding industrial requirements. Based at Tarboul, Egypt, we specialize in the manufacturing of FEP, PFA, and PTFE lined products with performance and durability. Our PTFE Lined Cross fittings are well-suited for resisting aggressive chemicals, high or low temperatures, and corrosion, while ensuring smooth flow and functional performance. Constructed from robust materials and having a smooth interior finish. These fittings aid in the maintenance of clean flow paths and are available in custom-designed configurations to meet various process demands.

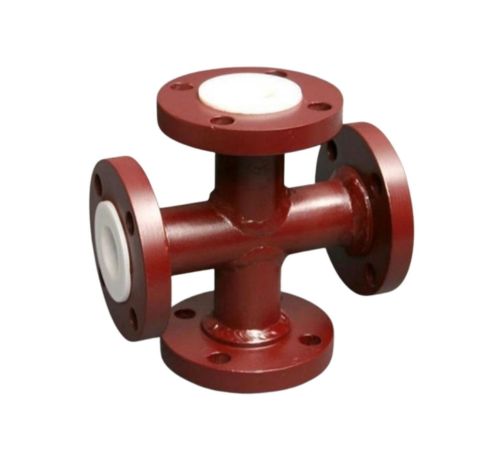

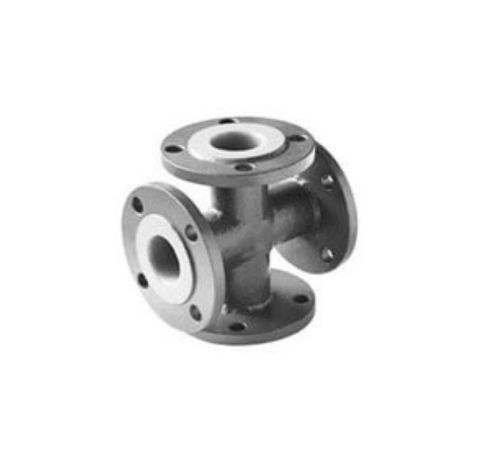

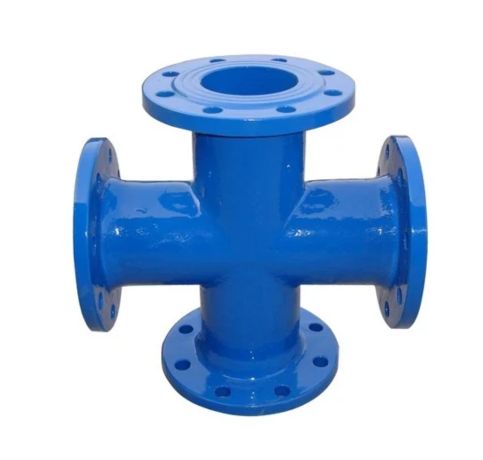

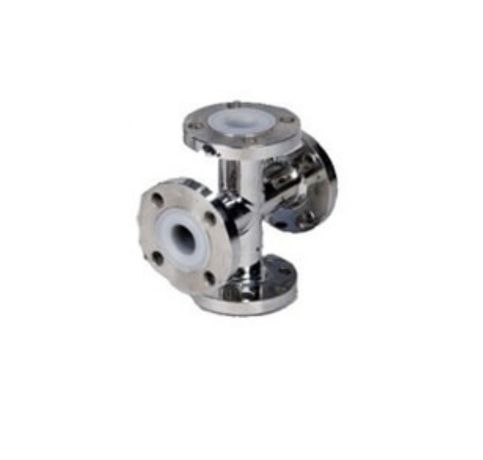

A Cross Lined with PTFE is a four-way connector that connects pipes at 90-degree angles to allow for fluid flow in multiple directions. The PTFE inner lining gives superior resistance to chemical reaction, heat, and corrosion and is ideal for use where strength and cleanliness are utmost. Utilized widely in the chemical processing, pharmaceutical and petrochemical industries, such fittings offer smooth, leak-free distribution of flow and ensure safe operation in complex piping systems.
Size : 25 NB to 300 NB
Outer body : ASTM A 395 Gr 60-40-18
Flange Connection : ANSI B 16.5
Face to Face : ANSI B 16.10
Spark Test : 15 KVA
Hydro Test : at 29.8 kg/cm2
FEP- Max Temp : 180° C
PP Max Temp : 100° C
PFA Max Temp : 200° C
Eman PTFE Lining is a leading supplier of PTFE Lined Cross in Tarboul, Egypt, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| CLASS – 150 # | ||||||||||
| NB | L | FLG. | RF | PCD | App. | App. | LINER THK | N x M | WEIGHTS | |
|---|---|---|---|---|---|---|---|---|---|---|
| O / D | O / D | T1 | T1 | Vaccume (T) | Non Vacc (T) | (kg/piece) | ||||
| 1/2″ | —- | 89 | 35.1 | 60.5 | 14.2 | 24.2 | 3.0 | 3.0 | 4 x 1/2″ | 4 |
| 3/4″ | —- | 98 | 42.9 | 69.9 | 15.7 | 27.7 | 3.0 | 3.0 | 4 x 1/2″ | 3.5 |
| 1″ | 89 | 108 | 50.8 | 79.2 | 17.2 | 29.2 | 4.0 | 3.0 | 4 x 1/2″ | 5.5 |
| 1 1/4″ | 95 | 118 | 63.5 | 88.9 | 18.7 | 30.2 | 4.0 | 3.0 | 4 x 1/2″ | 7.7 |
| 1 1/2″ | 102 | 127 | 73.2 | 98.6 | 20.5 | 32.5 | 4.0 | 3.0 | 4 x 1/2″ | 8.7 |
| 2″ | 114 | 152 | 91.9 | 120.7 | 22.1 | 37.1 | 4.0 | 3.0 | 4 x 1/2″ | 14.0 |
| 2 1/2″ | 127 | 178 | 104.6 | 139.7 | 25.4 | 40.4 | 4.0 | 3.0 | 4 x 5/8″ | 20.6 |
| 3″ | 140 | 191 | 127.0 | 152.4 | 27.9 | 42.9 | 4.0 | 3.0 | 4 x 5/8″ | 24.8 |
| 4″ | 165 | 229 | 157.2 | 190.5 | 28.9 | 43.9 | 4.5 | 3.0 | 8 x 5/8″ | 39.1 |
| 5″ | 190 | 254 | 185.7 | 215.9 | 28.9 | 43.9 | 6.0 | 5.0 | 8 x 3/4″ | 68.8 |
| 6″ | 203 | 279 | 215.9 | 241.3 | 30.4 | 45.4 | 6.0 | 5.0 | 8 x 3/4″ | 79.5 |
| 8″ | 229 | 343 | 269.7 | 298.5 | 33.4 | 48.4 | 6.0 | 5.0 | 8 x 3/4″ | 99.0 |
| 10″ | 280 | 406 | 323.9 | 362.0 | 35.7 | 50.7 | 7.5 | 5.0 | 12 x 7/8″ | 160.0 |
| 12″ | 305 | 483 | 381.0 | 431.8 | 37.8 | 52.8 | 7.5 | 5.0 | 12 x 7/8″ | 280.0 |
Withstands harsh acids and solvents.
Prevents fluid leakage at joints.
Suitable for extreme process heat.
Tailored to fit system specifications.
These fittings are generally available in standard sizes from 25mm to 300mm NB. However, customized sizes can be manufactured based on specific project requirements.
Yes, they are compatible with a wide variety of aggressive chemicals, including acids, alkalis, solvents, and other corrosive fluids.
Unlike regular metal fittings, PTFE-lined crosses offer excellent resistance to corrosion and chemical attack, protecting both the system and the medium from contamination.
To ensure proper installation, use compatible gaskets, align the flanges accurately, and apply the recommended torque to avoid damaging the PTFE lining.
Yes, PTFE is highly heat-resistant and can typically endure temperatures up to 260°C, making it well-suited for high-temperature applications.
