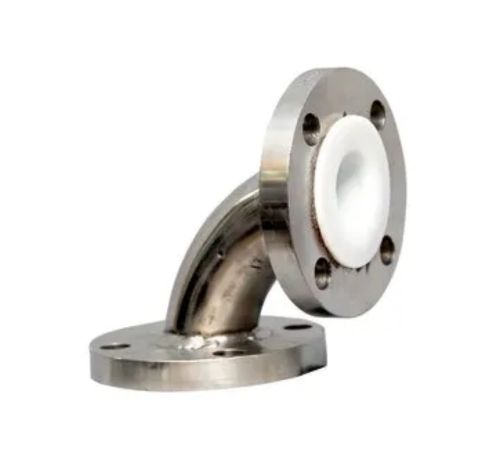

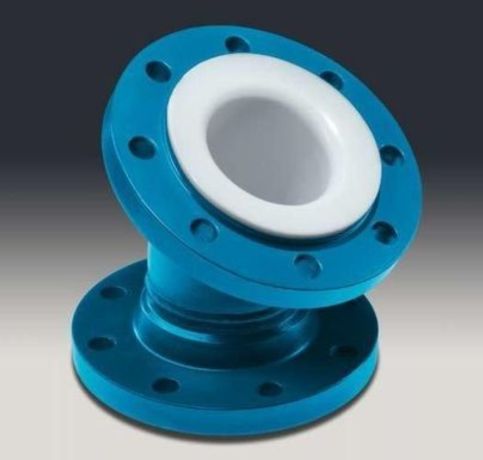

Eman PTFE Lining is a well-established PTFE, FEP and PFA-lined elbow Tarboul, Egypt producer and supplier. Built to excel in harsh corrosive and high-temperature environments our 90-degree and 45-degree PTFE-lined elbows provide smooth direction changes with superior chemical resistance and mechanical strength. We supply high-quality, long-lived lined elbows that can satisfy the harsh requirements of process industries. Production in our own facility ensures reliable, leak-free performance in extreme process conditions.
PTFE Lined Elbow is a piping fitting used to redirect the flow in a piping system, usually 45°, 90°, or 180° angles. Internally lined with PTFE (Polytetrafluoroethylene), it is strongly resistant to corrosive chemicals for safe and long-term operation. They are widely used in aggressive or high-purity fluid-handling applications. The PTFE coating prevents contamination, reduces wear, and extends piping system operating life, making it the ideal solution for severe process applications.
Size : 25 NB to 300 NB
Flanges Used : ASTM A 105/IS 2062/SS 304/SS 316
Hydro Test : at 29.8 Kg/cm2
Spark Test : 15 KVA
Outer body : ASTM A 234 Gr WPB SCH-40/SS 304/SS 316
Lining : PFA
Eman PTFE Lining is a leading supplier of PTFE Lined Elbow in Tarboul, Egypt, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
|
NB
|
ID
|
RF
|
OD
|
PCD
|
No.Of Holes x Dia Of Holes
|
Lining Thickness Standard
|
Lining Thickness Full Vacuum
|
Length Max.
|
| 15 | 10.80 | 34.90 | 88.9 | 60.3 | 4×15.9 | 3.0 | 3.1 | 3000 |
| 20 | 16.00 | 42.70 | 98.4 | 69.8 | 4X15.9 | 3.0 | 3.1 | 3000 |
| 25 | 20.15 | 50.80 | 108.0 | 79.4 | 4X15.9 | 3.2 | 3.5 | 3000 |
| 40 | 33.90 | 73.00 | 127.0 | 98.4 | 4X15.9 | 3.2 | 3.5 | 3000 |
| 50 | 45.50 | 92.10 | 152.4 | 120.7 | 4X19 | 3.5 | 4.6 | 3000 |
| 65 | 55.68 | 104.80 | 177.8 | 139.7 | 4×19 | 3.5 | 4.8 | 3000 |
| 80 | 70.90 | 127.00 | 190.5 | 152.4 | 4X19 | 3.5 | 5.0 | 3000 |
| 100 | 94.30 | 157.20 | 228.6 | 190.5 | 8X19 | 4.0 | 5.8 | 3000 |
| 150 | 114.10 | 215.90 | 279.5 | 241.3 | 8X22.2 | 5.0 | 6.8 | 3000 |
| 200 | 195.10 | 269.90 | 342.9 | 298.5 | 8X22.2 | 5.0 | 7.9 | 2000 |
| 250 | 247.40 | 323.90 | 406.4 | 362.0 | 12X25.4 | 5.0 | 8.8 | 2000 |
| 300 | 297.00 | 381.00 | 482.6 | 431.8 | 12X25.4 | 5.0 | 9.0 | **** |
Ensures secure and safe flow direction
Performs reliably in elevated heat conditions.
Minimizes turbulence and pressure drop
Handles aggressive chemicals without degradation.
PTFE-lined elbows are used to safeguard piping systems against corrosive chemicals, enhancing durability, providing superior chemical resistance, and reducing maintenance needs in aggressive environments.
These elbows come in a range of sizes from 1/2″ to 6″, making them suitable for a variety of industrial installations.
Yes, PTFE-lined elbows are non-toxic and hygienic, making them ideal for applications in the food, beverage, and pharmaceutical sectors.
Absolutely, they are designed to endure temperatures up to 230°C, depending on the specific pressure and process conditions.
Yes, custom configurations are available, including specific sizes, bend angles, and lining thicknesses to meet your system’s exact requirements.
